Wiring a Frontend Plugin

Frontend plugins must be wired to the DevPortal instance configuration during dynamic loading, or they will not work at all (despite being loaded). This is a critical feature because - unlike static ones - dynamic plugins cannot imply in code changes to the host Backstage project.

Understand Frontend Plugin Wiring

All frontend plugins must bring their own settings in the pluginConfig: field, thus defining routes, sidebars, mount points, icons, APIs, etc.

The sample frontend plugin we have just built and packaged defined a page and a sidebar link, so it can be wired to DevPortal by a configuration like the one below:

global:
  dynamic:
    plugins:
      - package: '@your-org/plugin-my-front-plugin-dynamic@x.y.z'
        disabled: false
        integrity: sha512-xxxxxxxxx
        pluginConfig:
          dynamicPlugins:
            frontend:
              your-org.plugin-my-front-plugin:
                dynamicRoutes:
                  - path: /my-front-plugin
                    importName: MyFrontPluginPage
                    menuItem:
                      icon: SomeIcon
                      text: My Plugin Page
                      enabled: true

Testing with VKDR

Our local DevPortal setup using vkdr can be used to validate locally the wiring of a dynamic frontend plugin.

Steps

What you need:

• A local npm registry (run Verdaccio at local port 4873)
• Publish the frontend plugin to Verdaccio (as described here)
• Obtain the SHA integrity signature of the published plugin
• A local vkdr cluster with DevPortal properly installed - check the local DevPortal setup guide for more info.

Verdaccio

To start a local Verdaccio registry you may run:

verdaccio -l 0.0.0.0:4873

Do not forget to package and publish the frontend plugin to Verdaccio.

Signature

To obtain the integrity signature of the published plugin you may run (replace @your-org/plugin-my-front-plugin-dynamic@x.y.x with your plugin name):

npm view @your-org/plugin-my-front-plugin-dynamic@x.y.z --registry http://localhost:4873 dist.integrity

important

The integrity signature is a SHA512 hash of the plugin package. It is required for the dynamimc plugin to be loaded.

VKDR Infra Up

To start a local vkdr cluster you may run:

vkdr infra up

VKDR DevPortal Setup

You can provide vkdr devportal command a complimentary YAML file containing the configuration for the dynamic plugin you have just published to Verdaccio. Create a file named merge-dynamic.yaml with the following content:

global:
  dynamic:
    plugins:
      - package: '@your-org/plugin-my-front-plugin-dynamic@x.y.z'
        disabled: false
        integrity: sha512-xxxxxxxxx
        pluginConfig:
          dynamicPlugins:
            frontend:
              your-org.plugin-my-front-plugin:
                dynamicRoutes:
                  - path: /my-front-plugin
                    importName: MyFrontPluginPage
                    menuItem:
                      icon: LibraryBooks
                      text: My Plugin Page
                      enabled: true

Notice this config is equivalent to the static wiring we did in the frontend plugin guide, enabling a route and a sidebar link.

To start vkdr and install DevPortal you may run (you need a valid Github token):

vkdr infra up
vkdr devportal install --github-token $GITHUB_TOKEN \
  --samples --npm "http://host.k3d.internal:4873" \
  --merge ./merge-dynamic.yaml

note

This command installs DebPortal with the extra plugin wiring. It also installs a few sample apps and configures DevPortal to rely on Verdaccio as an external npm registry.

Open DevPortal (VKDR)

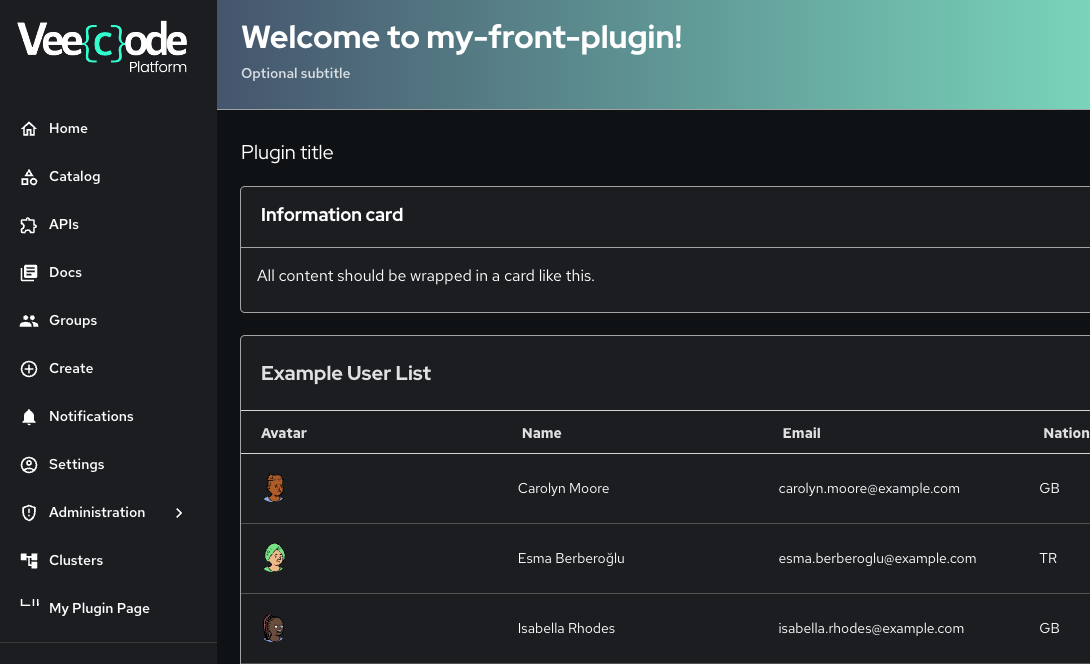

The local installation of DevPortal should be available at http://devportal.localhost:8000.

Additional Documentation

More info on frontend plugin wiring can be found on RHDH wiring documentation.
